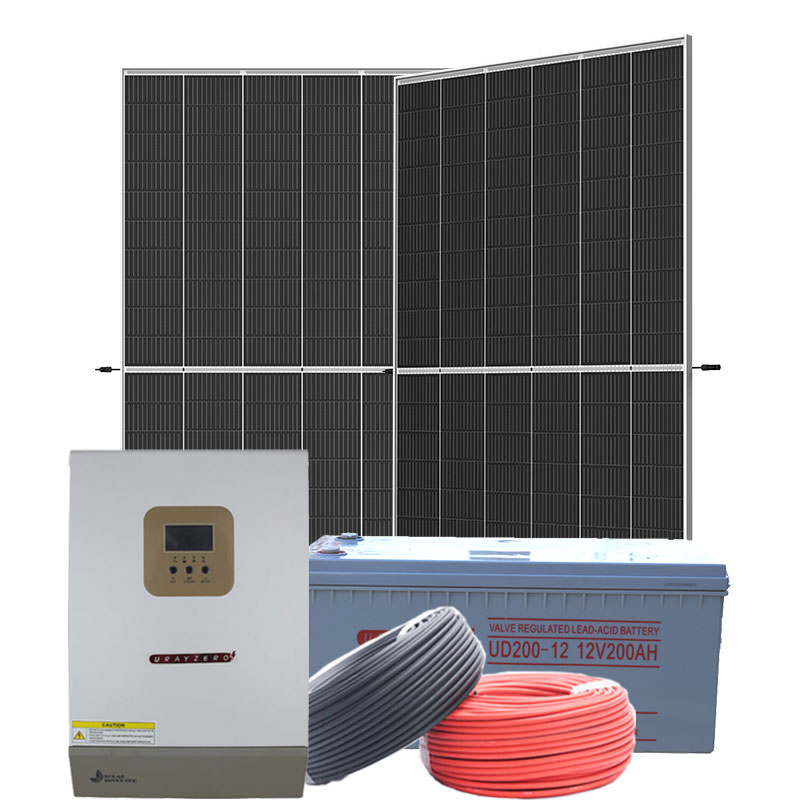

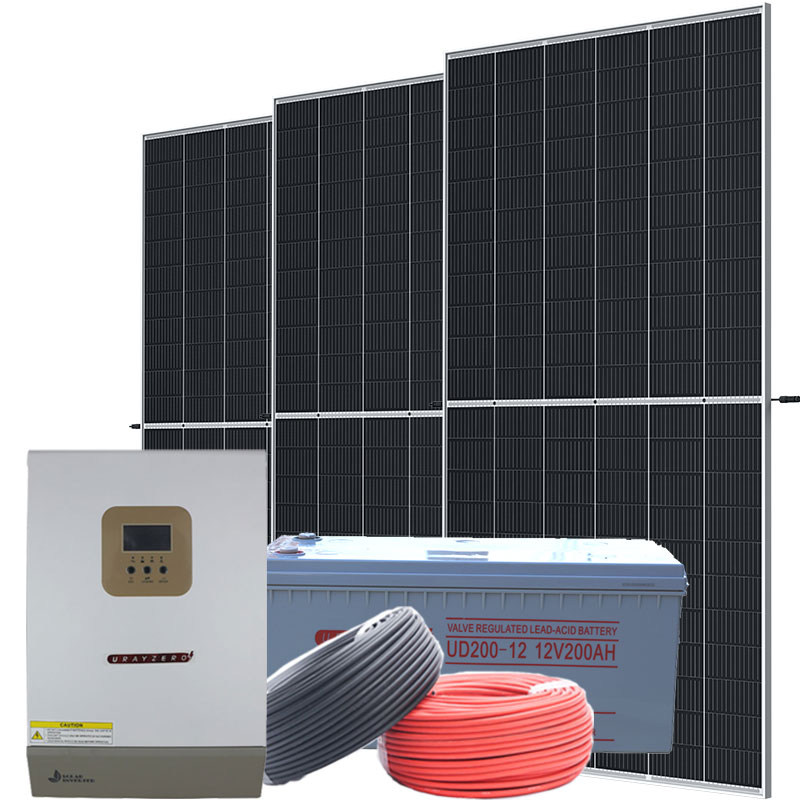

Solar Energy System
Solar Energy System
Solar Energy System

Solar Energy System

  • Warranty:
  • 3months-1year
  • Free installation service:
  • NO
  • Place of Origin:
  • Shanghai, China
  • Brand Name:
  • xing ao
  • Model Number:
  • 10KW
  • Application:
  • Home
  • Solar Panel Type:
  • Monocrystalline Silicon
  • Battery Type:
  • Lead-Acid, Lithium Ion
  • Controller Type:
  • MPPT
  • Mounting Type:
  • Ground Mounting
  • Load Power (W):
  • 10KW
  • Output Voltage (V):
  • 220/110
  • Output Frequency:
  • 50/60HZ
  • Certificate:
  • CE/TUV/ISO/UL
  • Pre-sales project design:
  • Y
  • Model number::
  • solar system
  • Solar system::
  • Monocrystalline Silicon
  • Controller Type::
  • MPPT
  • Battery Type::
  • Lead-Acid, Lithium Ion, Lead Acid(Can be customized)
  • Output Frequency::
  • 50/60Hz
  • Output Voltage (V)::
  • 110/220v
  • Usage::
  • Home Solar Energy Generation
  • Solar panel warranty::
  • 25 years
  • inverter warranty::
  • 1 year
  • Certificate::
  • CE/TUV/ISO

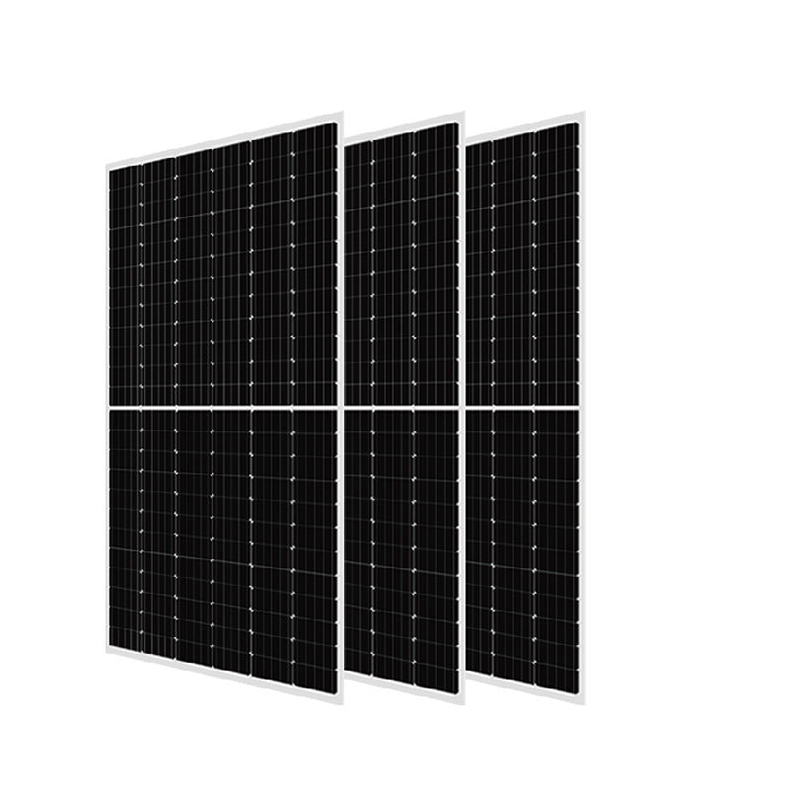

Solar Panels


> 25 years Warranty
> Highest conversion efficiency of 17%
> Anti-reflective and anti-soiling surface power loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

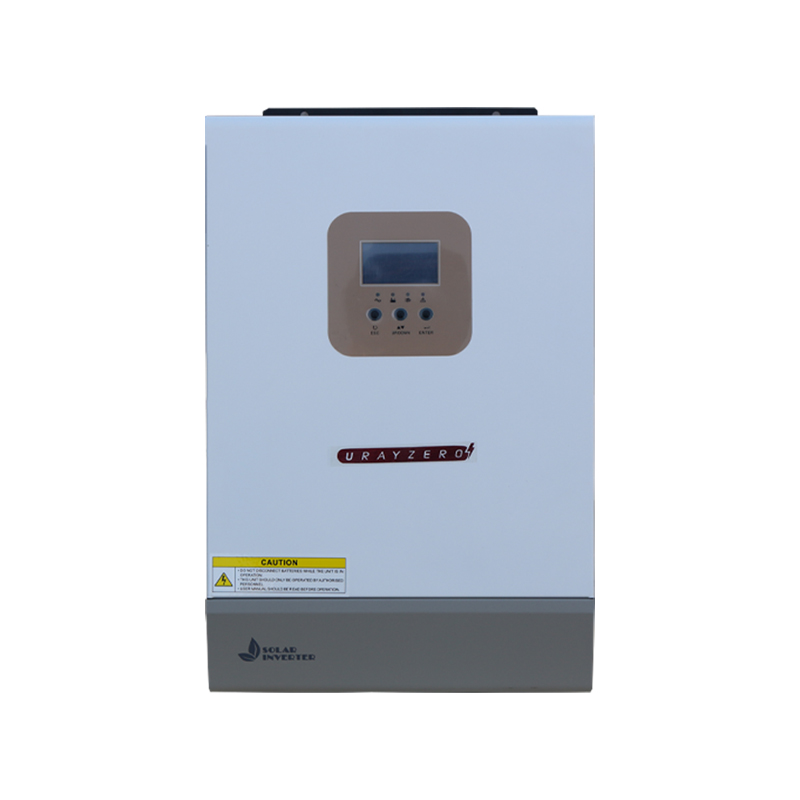

solar inverter


>CAPACITY: 5000VA/5000W
>DC Input: 48 VDC
>AC Input: 230VAC,50/60Hz
>Solar Charger Mode: MPPT-48
>Rated Current:100A
>Rated Power: 5500W
>Best Vmp Range: 300-400VDC
>Operating Voltage Range:120-500VDC
>Max.Solar Voltage(VOC) :500VDC
>SIZE:552*385*193MM

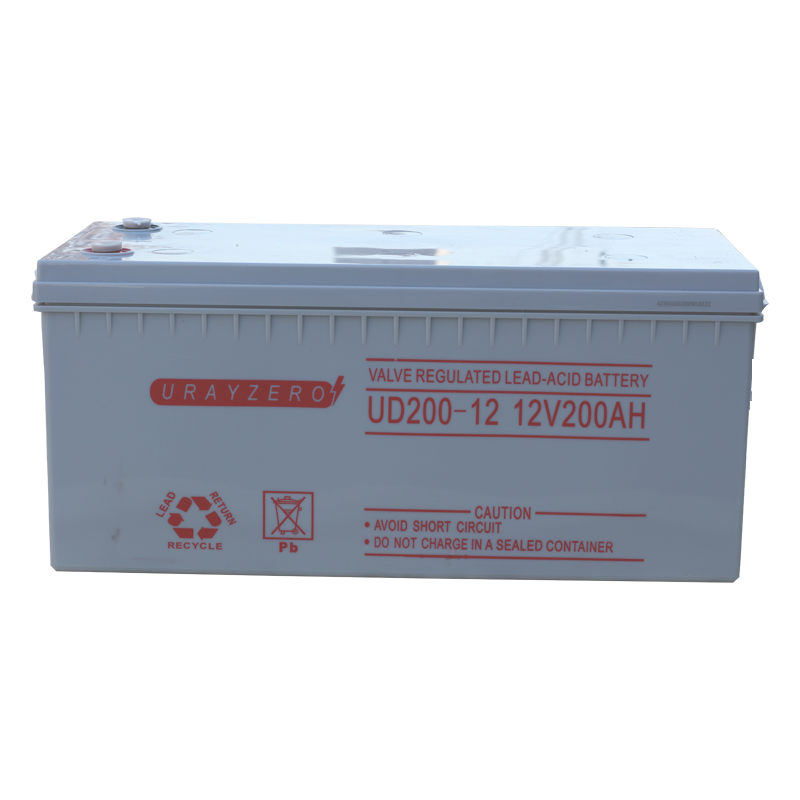

Battery


>Gel Battery
>12v 200AH
>SIZE:50*24*26CM



Accessories

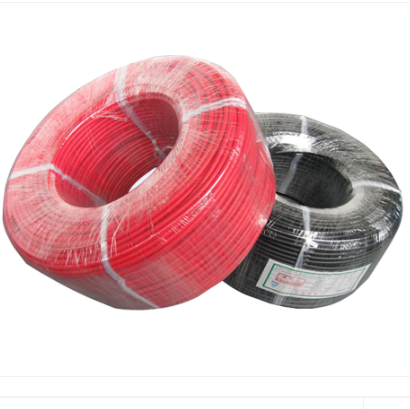

> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC/DC Combine box
